Power Transmission

Power transmission lines are vital components of the electrical grid system, serving as conduits that link power stations and substations. They facilitate the seamless transmission of substantial amounts of electricity at high voltage levels, ensuring minimal loss and maximizing efficiency. Due to their pivotal role, these lines are indispensable in the reliable provision of electricity.

What is an electric transmission system?

The electric transmission system is a crucial component of the electrical power infrastructure that facilitates the efficient and reliable transfer of electricity over long distances from power generation sources to end consumers. It forms an essential part of the overall electrical grid.

The main purpose of the electric transmission system is to transport electricity generated at power plants, such as hydroelectric, nuclear, solar, wind, or thermal power plants, to substations located closer to population centers or industrial areas. From these substations, electricity is further distributed to individual homes, businesses, and other electrical loads.

Here’s a step-by-step explanation of how the electric transmission system operates:

1. Power Generation: Electricity is generated at power plants through various means. This electricity is typically generated at high voltages to minimize losses during transmission.
2. Step-up Transformers: The generated electricity is fed into step-up transformers, which increase the voltage for efficient transmission. Higher voltages reduce the current required for a given power, reducing resistive losses during transmission.

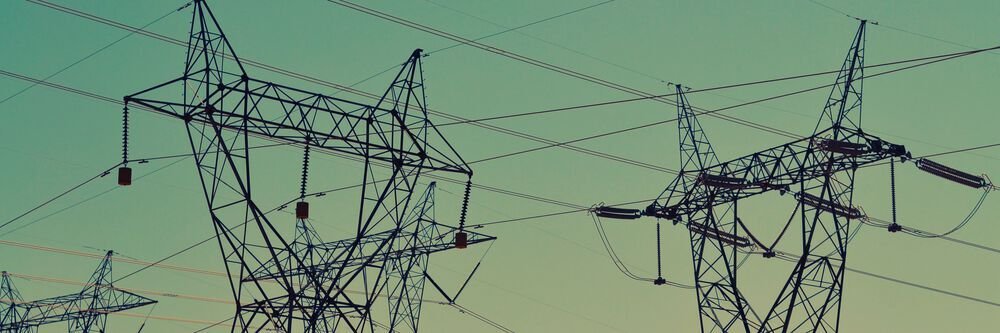

3. Transmission Lines: High-voltage transmission lines, often referred to as power lines or grid lines, carry the electricity over long distances. These lines are made of conductors, usually aluminum or copper, supported by tall transmission towers or poles. The voltage levels in transmission lines can range from hundreds of thousands to millions of volts, depending on the distance and power capacity required.
4. Substations: Along the transmission lines, there are substations strategically located to regulate and control the flow of electricity. Substations house transformers that step down the voltage for further transmission or distribution. They also include various protective devices, such as circuit breakers and relays, to ensure the safety and reliability of the system.
5. Interconnections: Transmission lines are interconnected to form a network, enabling power to flow between different regions or countries. These interconnections enhance grid stability, allow sharing of power resources, and provide backup options during emergencies or power deficits.
6. Grid Management: The electric transmission system is managed by grid operators or system operators who monitor and control the flow of electricity, ensuring a balance between generation and consumption. They utilize sophisticated technologies, such as supervisory control and data acquisition (SCADA) systems, to monitor the status of transmission lines, substations, and power flow.
7. Distribution: At local distribution substations, the voltage is further stepped down to levels suitable for consumer use. Distribution lines carry electricity from these substations to homes, businesses, and other electrical loads within a specific area. These lines operate at lower voltages compared to transmission lines.
8. Consumer End: Finally, the electricity reaches consumers, where it powers various appliances, devices, and machinery, meeting their energy needs.

Overall, the electric transmission system plays a vital role in ensuring the reliable and efficient delivery of electricity across long distances. By minimizing power losses, maintaining grid stability, and enabling interconnection, it forms the backbone of our modern electrical infrastructure.

Primary transmission

When electrical energy is generated at a power station, it typically has a voltage ranging from 11kV to 33kV. However, before it is transmitted to distribution centers via transmission lines, it undergoes a transformation process using a transformer. This transformation increases the voltage to a level between 100kV and 700kV, or even higher, depending on the distance it needs to be transmitted. In general, the longer the transmission distance, the higher the voltage level.

The purpose of stepping up the voltage to these levels is to improve the efficiency of power transmission by reducing the losses caused by the resistance of the transmission lines (known as I2R losses). By stepping up the voltage, the current in the transmission lines decreases in proportion to the voltage, while the overall power remains constant. This reduction in current helps minimize the I2R losses.

This stage of power transmission is referred to as primary transmission. It involves transferring a large amount of electrical power from the initial generating station to the substation using overhead electrical lines. In certain cases, underground cables are also utilized, particularly for shorter transmission distances, in some countries.

Secondary transmission

When electrical power is generated and transmitted, it undergoes several stages before reaching its intended destination. Secondary transmission is an important step in this process.

Once electrical power reaches a receiving station, the voltage needs to be reduced to a more manageable level. This is achieved by using step-down transformers, which bring the voltage down to a range typically between 33kV and 66kV. This lower voltage is then transmitted through specialized transmission lines that extend from the receiving station to electrical substations located closer to areas of high electricity demand, such as cities, villages, and urban areas.

At these substations, another step-down transformation takes place. The electrical power is passed through additional step-down transformers, which further decrease the voltage to levels that are closer to what was initially generated. Typically, the voltage is reduced to around 11kV during this process.

Once the voltage has been reduced, the transmission phase transitions into the distribution phase. In the distribution phase, the electrical power is ready to meet the demand from primary and secondary consumers. This includes supplying electricity to homes, businesses, and other facilities in the vicinity of the substations.

In summary, secondary transmission involves the reduction of voltage at receiving stations and its transmission through dedicated lines to substations closer to areas of high electricity demand. The voltage is stepped down again at these substations, preparing the electrical power for distribution to meet the needs of consumers.

The future of the electric transmission system

The future of the electric transmission system is expected to undergo significant advancements and changes. Here’s a clear explanation of the key elements shaping its future:

1. Renewable Energy Integration: As the world shifts towards decarbonization and reducing reliance on fossil fuels, renewable energy sources like solar and wind power will play a dominant role in the electricity generation mix. The electric transmission system will need to accommodate the integration of large-scale renewable energy projects, which are often located far from population centers. This will involve building new transmission lines and upgrading existing infrastructure to efficiently transmit electricity over long distances.
2. Smart Grid Technologies: The future transmission system will be increasingly equipped with smart grid technologies. These advanced systems will allow for real-time monitoring, control, and optimization of power flows, resulting in enhanced grid reliability, flexibility, and efficiency. Smart grid technologies will enable better integration of distributed energy resources (DERs), such as rooftop solar panels and battery storage, and support two-way power flows.
3. High-Voltage Direct Current (HVDC) Transmission: High-Voltage Direct Current (HVDC) transmission is expected to gain prominence in the future. HVDC offers lower transmission losses over long distances compared to traditional alternating current (AC) transmission. It allows for the efficient integration of remote renewable energy sources, facilitates cross-border power trading, and improves grid resilience. HVDC transmission will require the development of new converter technologies and the expansion of HVDC transmission infrastructure.
4. Energy Storage: The integration of energy storage systems will play a vital role in the future electric transmission system. Energy storage technologies, such as batteries and pumped hydro storage, will help address the intermittent nature of renewable energy sources and enable the grid to balance supply and demand effectively. Storage systems located strategically along the transmission network will provide backup power, enhance grid stability, and support peak load management.
5. Grid Resilience and Cybersecurity: With the increasing reliance on interconnected technologies, grid resilience and cybersecurity will be paramount. The future electric transmission system will incorporate robust cybersecurity measures to protect against potential threats and ensure the uninterrupted operation of the grid. Advanced monitoring and control systems will be implemented to identify and respond to grid disturbances promptly, improving overall resilience.
6. Electrification of Transportation: The electrification of transportation, including electric vehicles (EVs), will have a significant impact on the electric transmission system. Widespread adoption of EVs will increase electricity demand, necessitating the expansion and upgrade of transmission infrastructure. Smart charging infrastructure and demand response programs will be crucial for managing the charging load and avoiding grid congestion.
7. Grid Flexibility and Demand Response: The future transmission system will emphasize grid flexibility and demand response capabilities. Demand response programs will incentivize consumers to adjust their electricity consumption patterns in response to price signals or grid conditions. This flexibility, coupled with advancements in grid control technologies, will help balance supply and demand in real-time, reducing the need for expensive infrastructure upgrades.

Overall, the future of the electric transmission system will be characterized by the integration of renewable energy sources, the utilization of smart grid technologies, the adoption of HVDC transmission, the incorporation of energy storage systems, a focus on grid resilience and cybersecurity, the electrification of transportation, and an emphasis on grid flexibility and demand response. These advancements will contribute to a more sustainable, reliable, and efficient electricity grid.
